Target Filters

Target Filters are used to filter targets for the current decision.

Creating Target Filters¶

1. To create a new target filter, define a new class that inherits from TargetFilter and override the OnFilterTarget method:


   public class ChargeStationFilter : TargetFilter
   {
       public ChargeStationType Type;

       protected override bool OnFilterTarget(UtilityEntity target)
       {
           return target.EntityFacade is ChargeStation station && station.Type == Type;
       }
   }

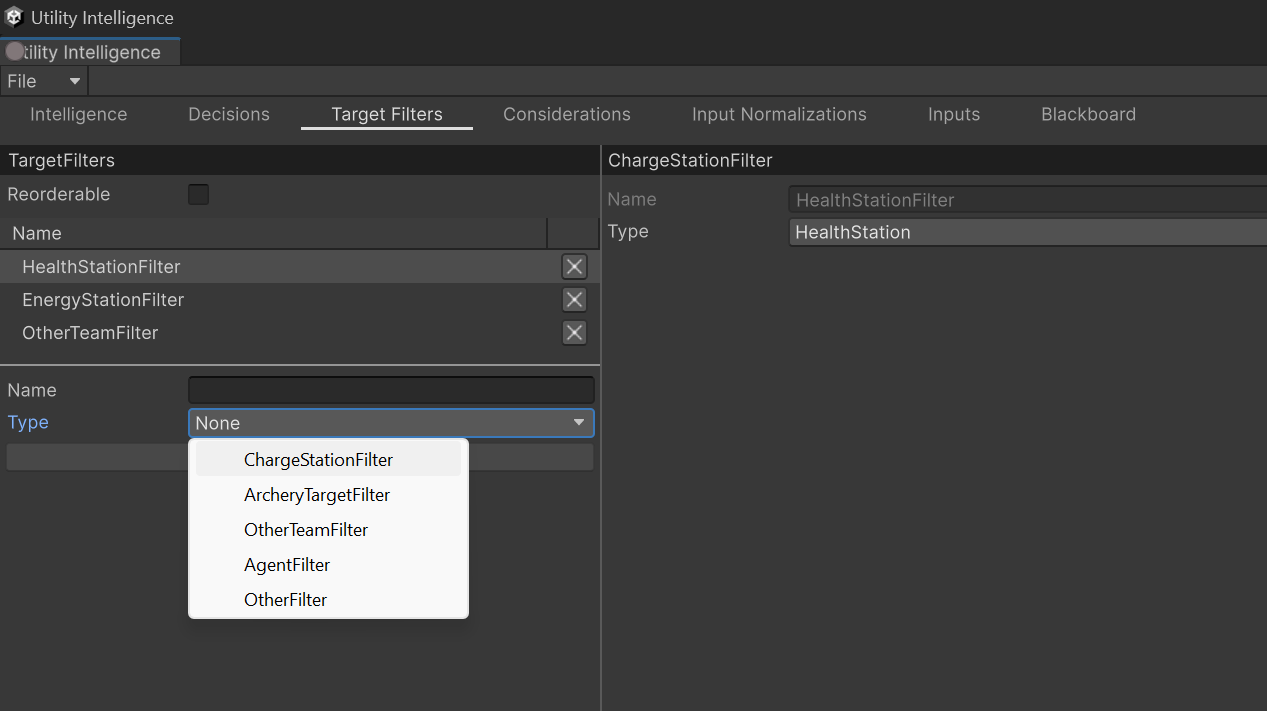

2. To add the the target filter to the intelligence asset, go to the Target Filter Tab, select the target filter type, give it a name, and then click the Create button:

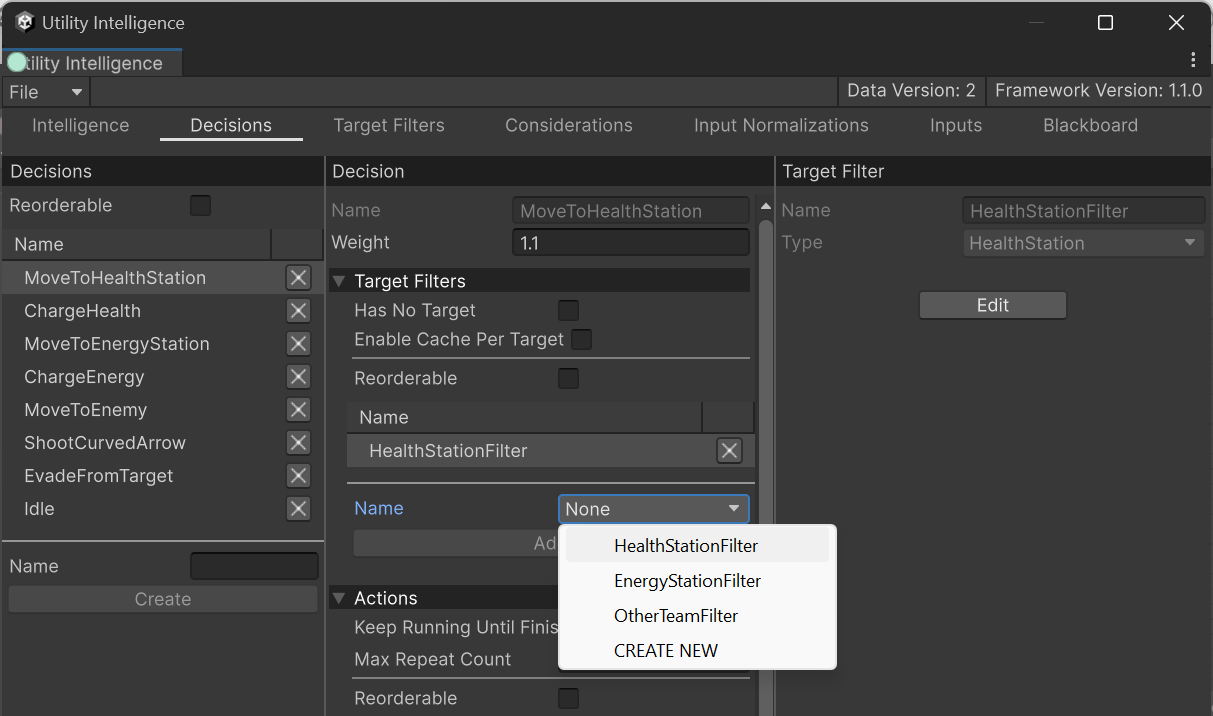

3. To attach the target filter to a decision, select the decision in the Decision Tab, choose the target filter’s name, and then click the Add button:


Adding Parameter Fields¶

There are many cases when you need to add parameters to an target filer to customize how it filter targets. To achieve this, you need to declare these parameters as public fields in your target filters. Here an example of how to do this:

public class TeamFilter : TargetFilter
{
    public Team Team;
    protected override bool OnFilterTarget(UtilityEntity target)
    {
        if (target.EntityFacade is Character targetCharacter)
        {
            return targetCharacter.Team == this.Team;
        }

        return false;
    }
}

Supported Field Types¶

Currently, only the supported field types can be serialized to JSON and adjusted using the Utility Intelligence Editor. Therefore, you should use these types when declaring parameter fields for your target filters.

Built-in Target Filters¶

Currently, we provides these built-in target filters:

• OtherFilter: Filters out the current agent, leaving other entities as targets.
• AgentFilter: Filters out entities that are not utility agents, leaving only utility agents as targets.
